UY 113 GHS 100

Details

Special(s)

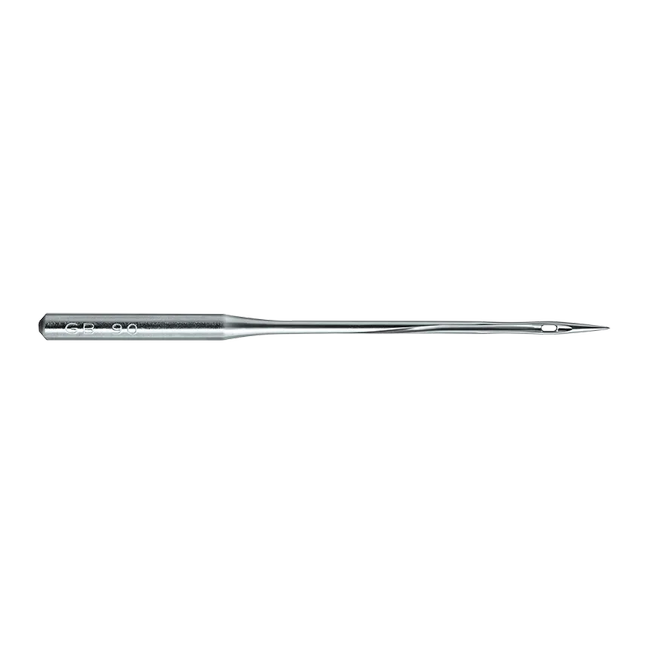

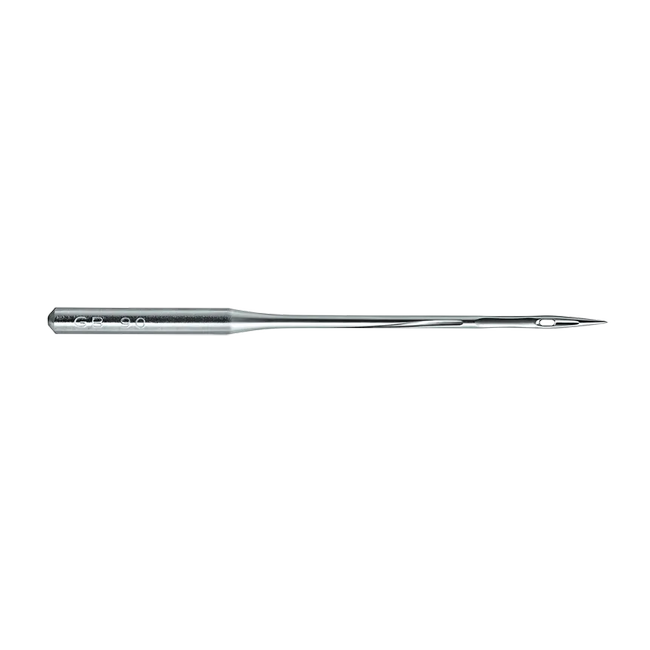

Spiral groove

On needles with a spiral groove, the long grooves do not run straight along the needle blade, but in a spiral or helical shape. They are used in inline chainstitch machines where the hook or looper moves along the sewing direction and the thread is guided from the front of the machine to the needle. As threading is carried out laterally from right to left, the thread runs diagonally over the needle blade. Therefore, the spiral groove has the advantage that the thread can lie in the spiral groove during needle penetration.

Point style

Small ball point

• Round point with small ball
• Suitable for fine and medium-weight knitted and woven fabrics
• When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged
• Perfectly suited for jersey and tricot fabrics
