| Length butt to eye | 338 mm |
|---|
| Shank diameter | 2.02 mm |
|---|
| Customary needle designations | 287 WH, 16X231, 71X1, DBX257, 16X257, 1738, DLX1 |
|---|
| Canu designation | 20:05 |
|---|
| Further point designations | SET, RD |
|---|

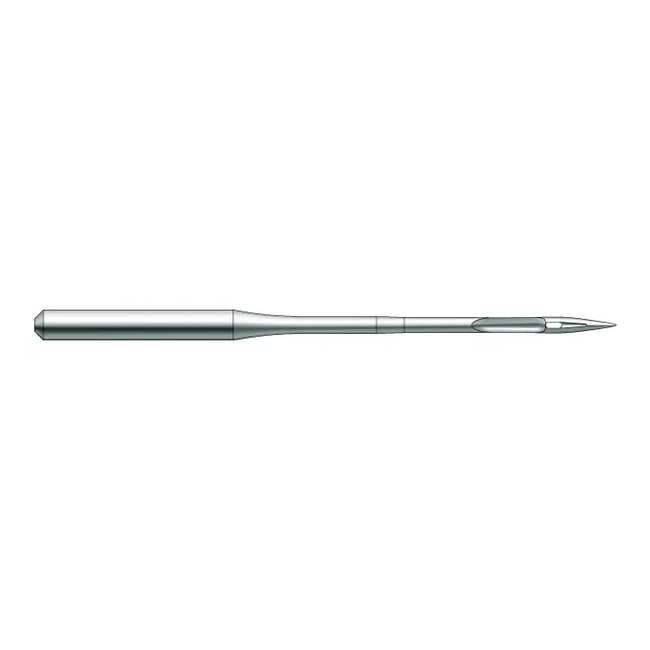

| Needle form description | Straight needle with single groove and scarf |
|---|
| Technical sewing application | Double lock stitch |
|---|
| Stitch type class | 300 |
|---|
| Recommended for | Thick leather, Heavy woven fabrics, Technical textiles |
|---|
| Examples of use | Belts, Cardboard boxes, Car mats, Transport bags |
|---|
| Coating | Chromium |
|---|
| Needle size | 2.0 Nm |
|---|

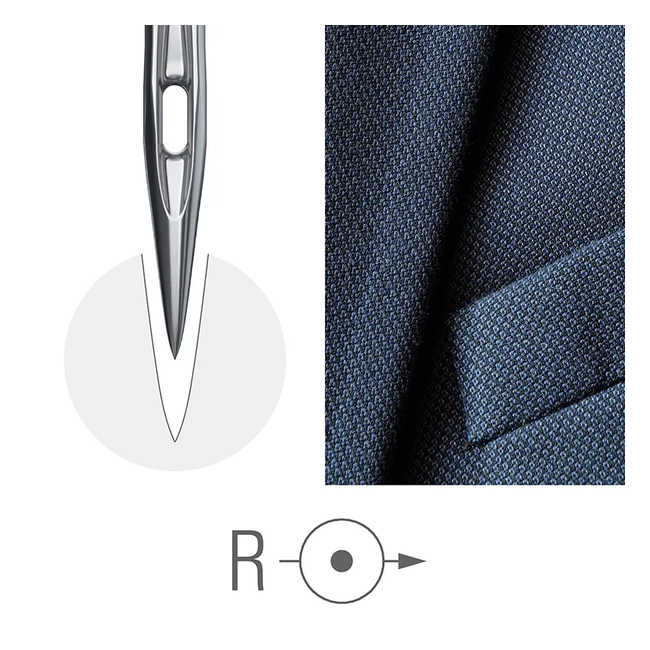

| Point style | R - Cloth point |
|---|
| Needle system | DBX1 |
|---|
