DBX1/1738/16X257 SD 75
DBX1/1738/16X257 SD 75
Stock Code :
779545
Add To Cart
Point style
Needle size
Coating
SD
75/11
Chromium
Details

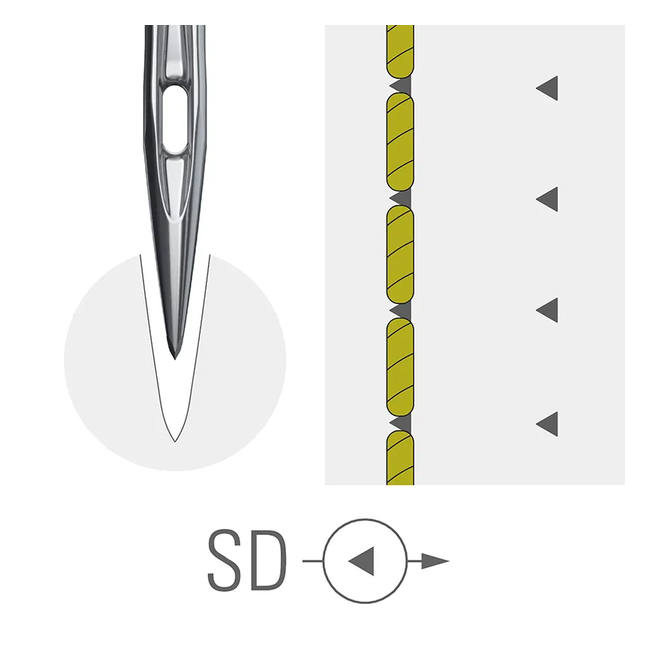

Point style
Round point with polished triple cutting edges at the very end of the point
Slightly triangular cut in leather
Straight seam
Thread slightly elevated
Suitable for short to medium stitches
Technicial Specifications
Length butt to eye
339 mm
Shank diameter
1.62 mm
Customary needle designations
287 WH, 71X1 SD, DBX257, 16X257 SD, 16X231 SD, 1738 SD, DBX1 SD
Canu designation
14:25
Further point designations
TRI FACET, R-TRI, TRI TIP, SD 1
Needle form description
Straight needle with single groove
Technical sewing application
Double lock stitch
Stitch type class
300
Recommended for
Thin leather
Examples of use
Embroidery on leather, Fine leather goods, Shoes
Coating
Chromium
Needle size
0.75 Nm

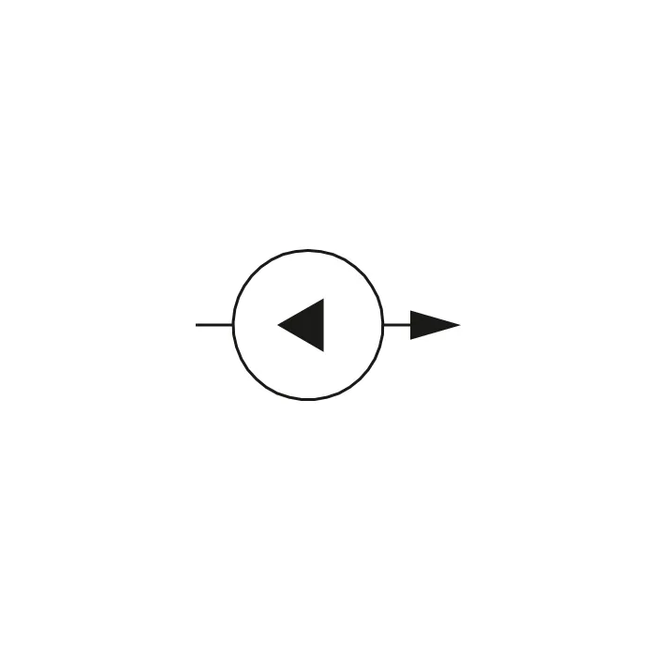

Point style
SD - Cutting point
Needle system
DBX1
