| Point style | Needle size | Coating |
|---|---|---|
| R | 130/21 | Chromium |

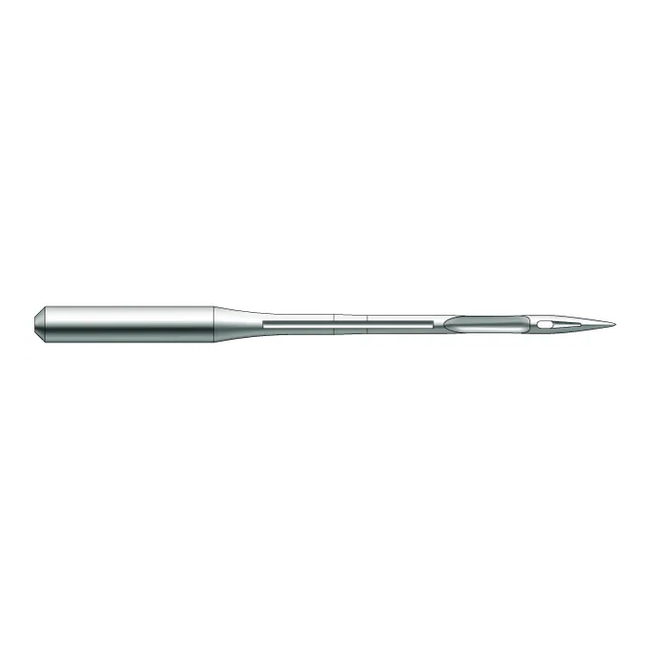

Flat shank at 180°
On sewing machine needles with a flat shank, one or multiple sides of the shank are flat. The flat shanks are used for radial positioning of the sewing machine needle in the needle bar. This ensures that the needle is positioned in exactly the same specified angle to the threading direction after each change. This guarantees a clear position of the needle in relation to the hook.
Spiral groove
On needles with a spiral groove, the long grooves do not run straight along the needle blade, but in a spiral or helical shape. They are used in inline chainstitch machines where the hook or looper moves along the sewing direction and the thread is guided from the front of the machine to the needle. As threading is carried out laterally from right to left, the thread runs diagonally over the needle blade. Therefore, the spiral groove has the advantage that the thread can lie in the spiral groove during needle penetration.

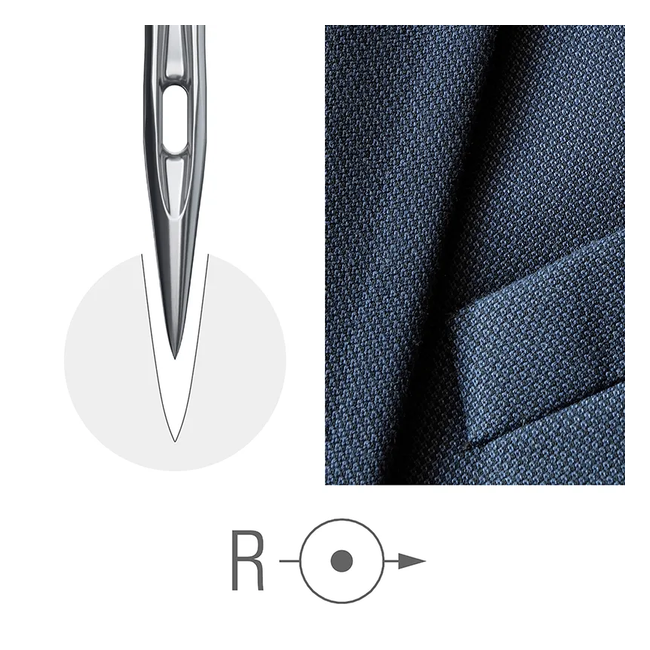

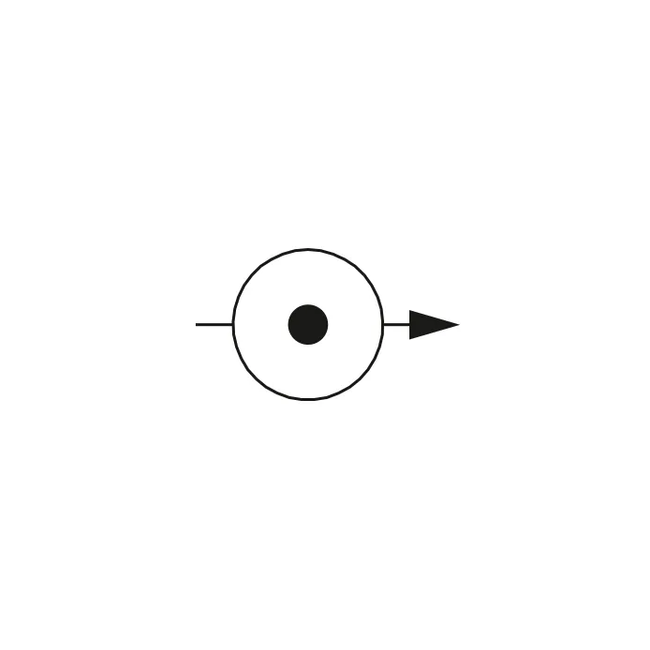

Normal round point
